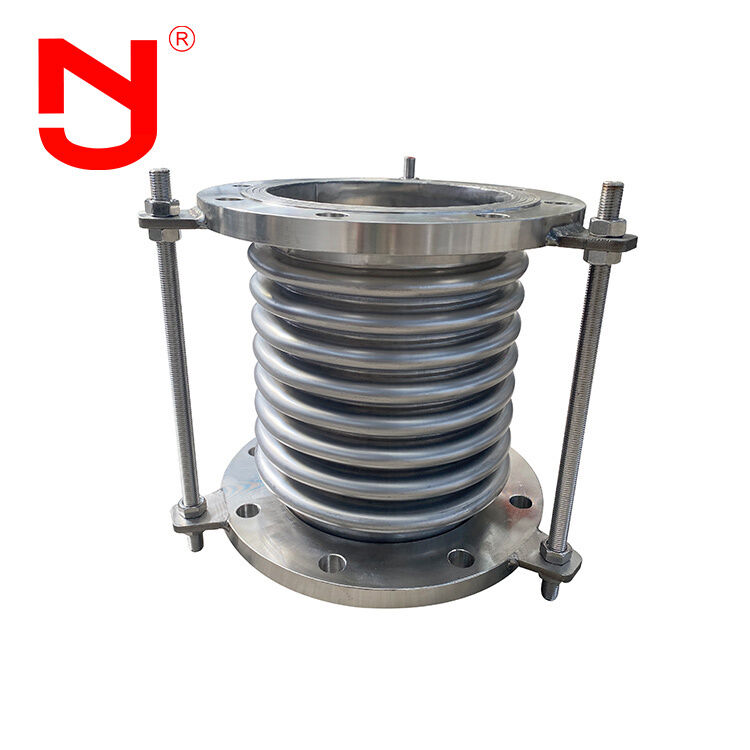

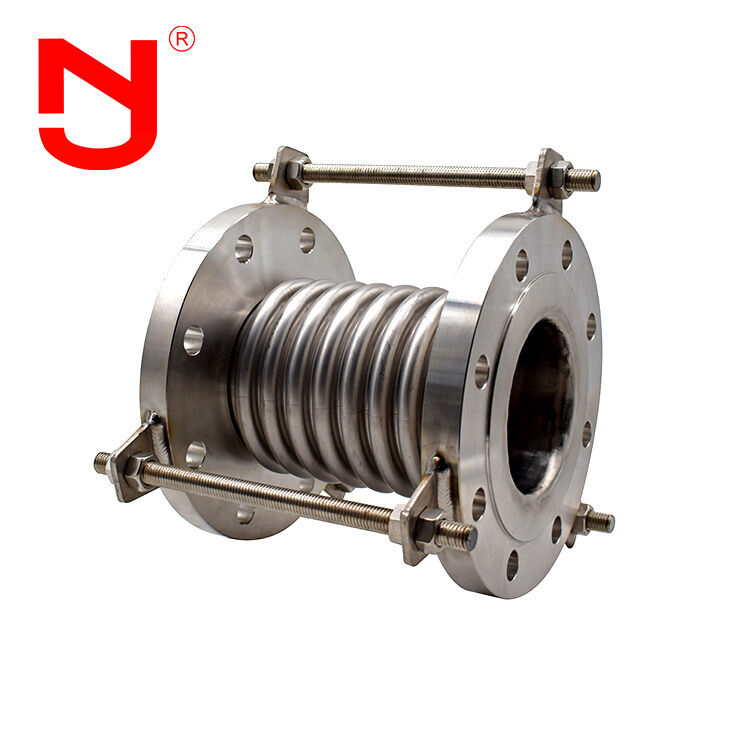

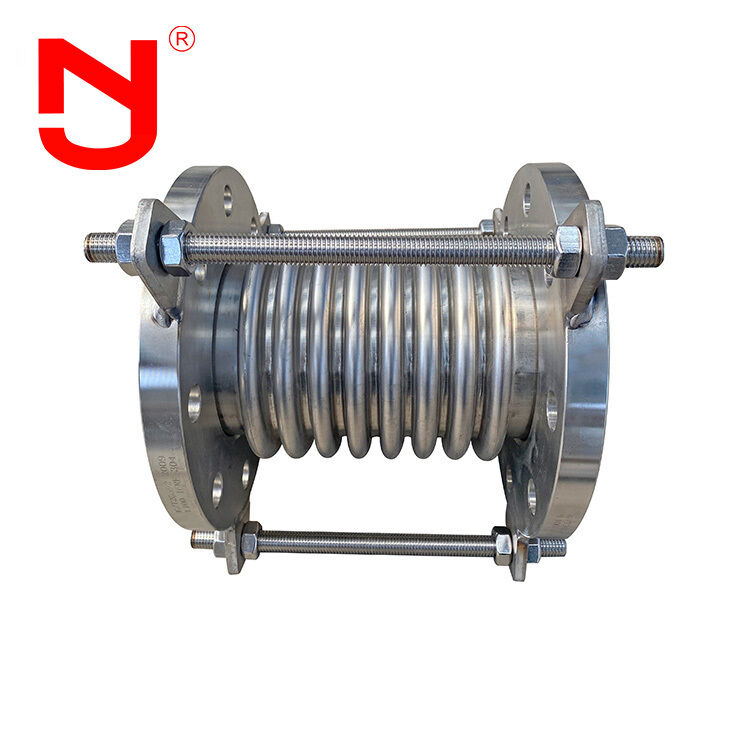

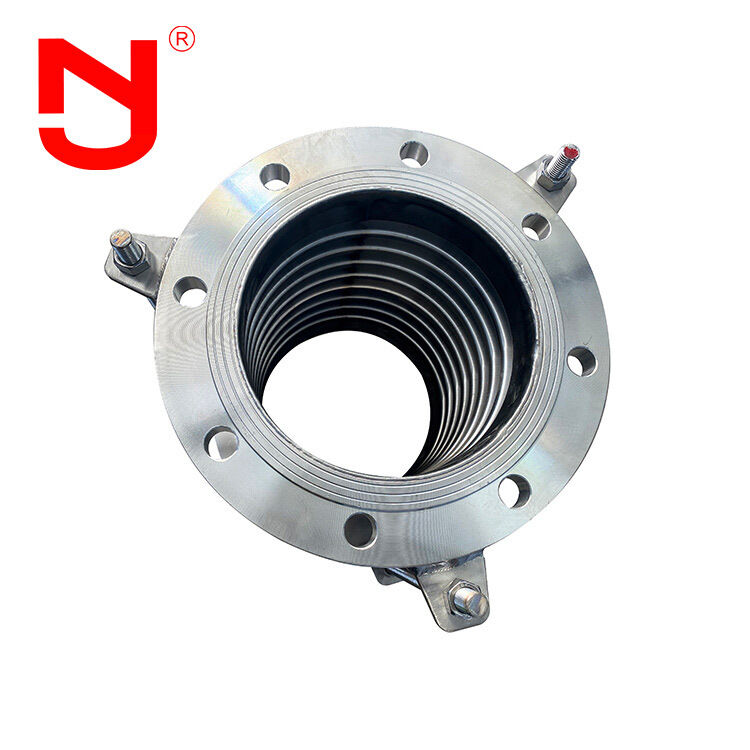

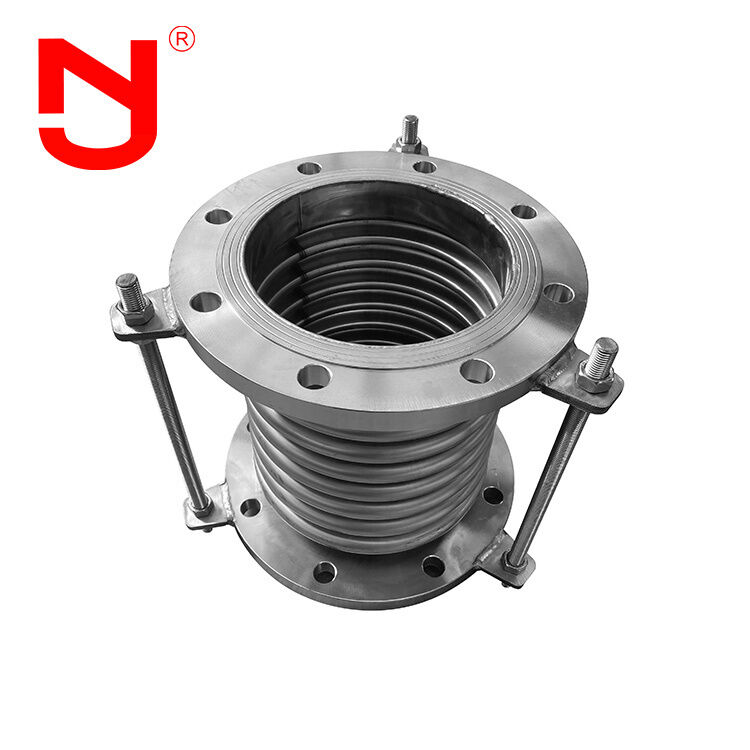

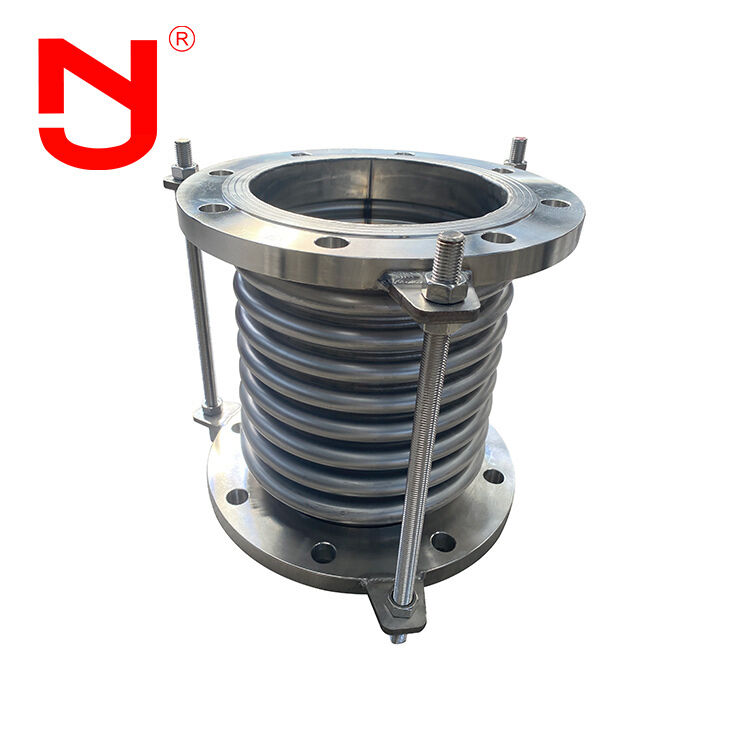

SS316 Metal Expansion Joint with High Temperature Resistance and Flange Standard DIN/ANSI/JIS/BS for Industrial Applications

High Temperature Resistance Metal Expansion Joint

SS316 Bellows Expansion Joint

Flange Standard DIN/ANSI/JIS/BS Expansion Joint

Luogo di origine:

Cina

Marca:

JINGNING

Certificazione:

CE、ZTC

Numero di modello:

JDZ

Documento:

Metal Bellows - CHNFLEX.pdf

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Parole chiave:

Tipo di giunto di dilatazione

Nome del prodotto:

Tipo di giunto di dilatazione SS316 Espansione a soffietto resistente alle alte temperature

Pressione di esercizio:

0---6.0Mpa

Materiale dei soffietti:

SS304, SS316, SS321

OEM e ODM:

Supporto

Materiale flangia:

SS304, SS316, acciaio al carbonio

Standard di flangia:

DIN/ANSI/JIS/BS

Mercato principale:

America, Europa

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prezzo

$10~89

Imballaggi particolari

cartone o legno

Tempi di consegna

5-15 giorni lavorativi

Termini di pagamento

Western Union, T/T, L/C, D/A, D/P, MoneyGram

Capacità di alimentazione

10000 serie a settimana

PRODOTTI RELATIVI

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Ottenga il migliore prezzo

Video

Corrosion Resistant SS316 Exhaust Expansion Joint with Vibration Resistance and Thermal Expansion Compensation

Ottenga il migliore prezzo

Video

SS316 Metal Expansion Joint with High Temperature Resistance and Flange Standard DIN/ANSI/JIS/BS for Industrial Applications

Ottenga il migliore prezzo

Video

SS316 Metal Expansion Joint with Thermal Expansion Compensation and Axial Movement for Industrial Applications

Ottenga il migliore prezzo

Contattaci

86-150-93112546

joints@chnflex.com

Contatta ora

Descrizione del prodotto

SS316 High Temperature Resistance Bellows Expansion Joint

Our SS316 High Temperature Resistance Bellows Expansion Joints are engineered to provide exceptional flexibility and durability in demanding high-temperature environments. These joints effectively absorb thermal expansion, vibrations, and misalignments in piping systems, ensuring reliable operation under extreme conditions. The SS316 construction offers excellent corrosion resistance, enhancing longevity and reducing maintenance costs. Ideal for petrochemical, power generation, and high-temperature processing industries.

Performance Characteristics

Compensates for axial, transverse, and angular thermal deformation in pipelines
Absorbs equipment vibration to minimize impact on pipelines
Mitigates pipeline deformation caused by seismic activity or land subsidence

Technical Specifications

Diameter (mm)	Pressure Grade (Mpa)	Available Area (cm²)	Max External Diameter (mm)	Length (mm)
32	1.0/1.6/2.5	16	225	160-250/264-280
40	1.0/1.6/2.5	23	244	164-259/269-289
50	1.0/1.6/2.5	37	259	172-276/282-306
65	1.0/1.6/2.5	55	270	215-294/300-322
80	1.0/1.6/2.5	81	284	240-338/344-366
100	1.0/1.6/2.5	121	304	235-317/323-345
125	1.0/1.6/2.5	180	334	282-314/316-342
150	1.0/1.6/2.5	257	364	282-339/338-367
200	1.0/1.6/2.5	479	442	340-402/402-426
250	1.0/1.6/2.5	769	507	393-459/493-399
300	1.0/1.6/2.5	1105	562	464-525/564-565
350	1.0/1.6/2.5	1307	622	509-564/609-604
400	1.0/1.6/2.5	1611	562	522-566/622-628
450	1.0/1.6/2.5	1972	700	403-498/503-523
500	1.0/1.6/2.5	2445	760	431-523/531-554
600	1.0/1.6/2.5	3534	835	478-548/578-588
700	1.0/1.6/2.5	4717	1110	490/590
800	1.0/1.6/2.5	5822	1265	502/602
900	1.0/1.6/2.5	7620	1186	/698
1000	1.0/1.6/2.5	9043	1286	/692

Product Details

Manufacturing Process

Our high-quality bellows expansion joints are precision-engineered using advanced manufacturing techniques:

Bellow Body Materials: Stainless Steel 304, 316L
Flange Materials: Q235 carbon steel, 304, 316L stainless steel

With over 17 years of design experience, we manufacture expansion joints meeting GB, ISO, DIN, ANSI, BS, JIS international standards and custom requirements.

Key Advantages

Competitive factory-direct pricing
17 years manufacturing experience with 5 years export expertise
Rigorous quality control exceeding industry standards
Custom mold base configurations and OEM services
Free samples available
Large inventory for immediate availability

Applications

Our bellows expansion joints are widely used in:

Chemical processing
Oil refining
Power generation
Light industry
Nuclear applications
Metallurgy
Mechanical systems
Instrumentation
Marine and aerospace industries

They compensate for thermal expansion, reduce vibration transmission, and accommodate foundation settlement in piping systems.

Frequently Asked Questions

Q: Can the expansion joint be marked with a custom logo?

A: Yes, we provide OEM/ODM services including custom branding.

Q: What are the standard face-to-face lengths?

A: Standard lengths include L130, L152, L203, with custom lengths available.

Q: Can you provide product drawings?

A: Yes, we provide detailed drawings upon request.

Q: What certifications do you offer?

A: We provide CE and ISO certifications.

Q: Are samples available?

A: Yes, we provide samples for quality evaluation.
